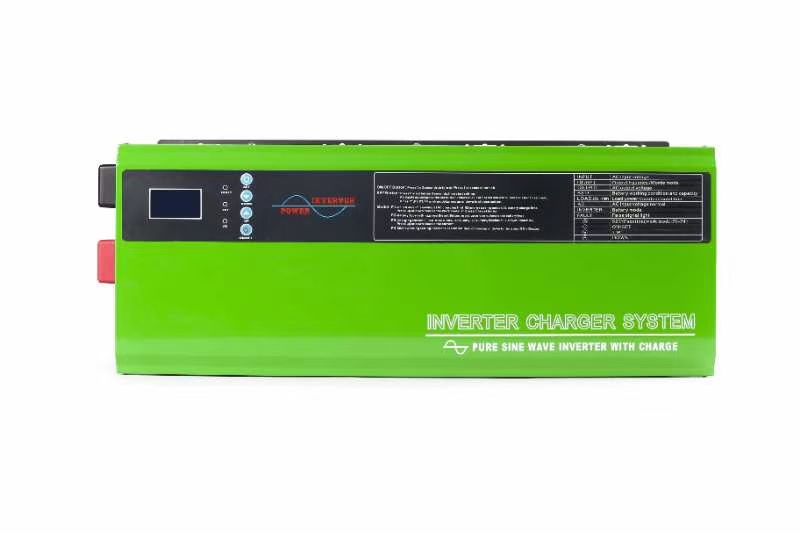

96V Low frequency 10kw inverter split phase 110V/220V 120V/240V
Rated power
10000W
Input Voltage
180-260VAC(AC:220)
Frequency
50/60Hz±3
Output Voltage
110V/220V, 120V/240V AC
Output waveform
Pure sine wave
Efficiency
>95%
Type of battery
Optional
Battery rated voltage
96V dc
AC charging current
0-35A
Protection
Overload： Rated power over 110%, shut down automatically，
short circuit： Automatic Shutdown
battery high and low voltage
AC input high and low voltage protection
Solar Charger Controller
MPPT solar controller
MPPT Current
50A，60A,100A(optional)
Communication port
RS232/SNMP(Optional)
Product Description
Feature:
~ Pure sine wave output
~ With MPPT solar charge controller 30A-100A(Optional)
~ It has perfect protection functions such as overload, high voltage, low voltage, short circuit, etc
~ With UPS automatic switching function, grid power charging function, AVR voltage stabilization function ~ DSP Intelligent Chip Control, Excellent Performance
~ Strong inverting capability, one-time soft start, triple output peak power, with all inductive loads
~ Full personalized LCD display, it can display various data information of inverter, solar charge controller ~ Grid power priority, energy saving mode and solar energy priority can be set free to meet different occasions
~ Battery type, charging voltage grid power charging current (0-35A) can be set free to meet the charging management of different types of batteries

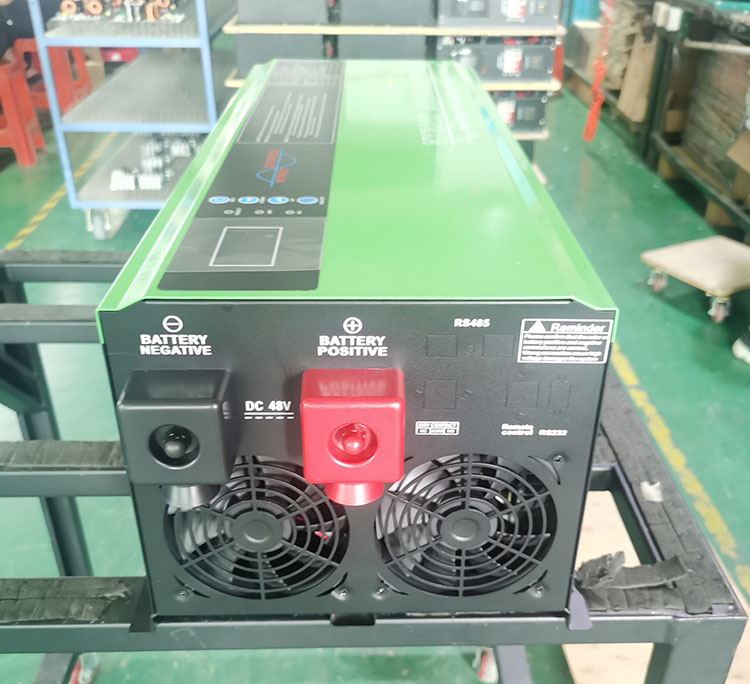

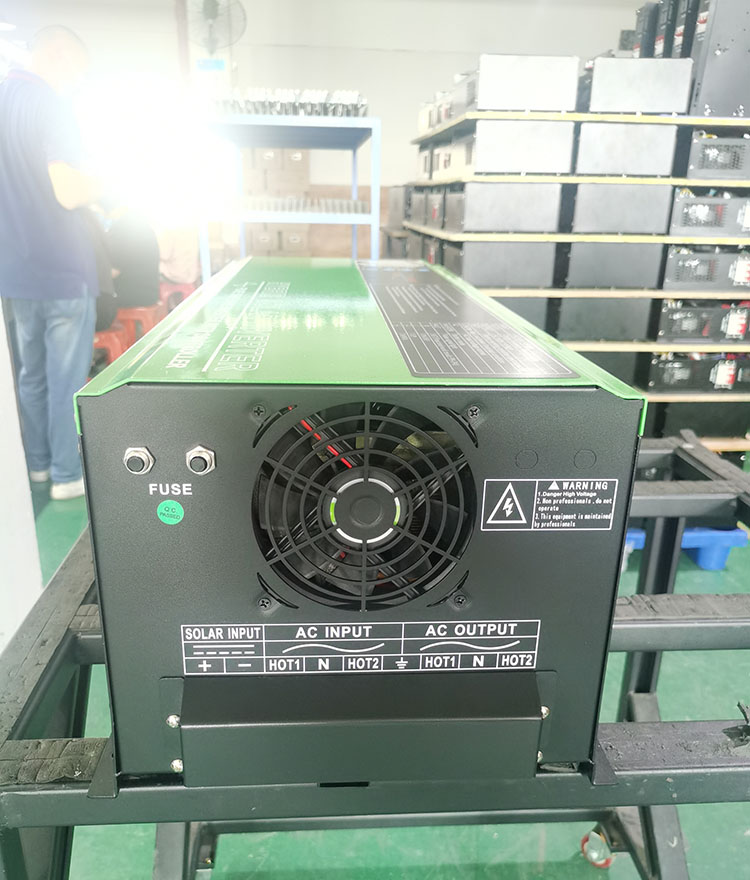

Details Image
24V DC system
2-3kw output power
48V DC system
4-6KW output power
96V DC system
8-12kw output power
