High Frequency Hybrid Solar Inverter Pure Sine Wave 2.2KW 24VDC 220VAC MPPT Solar Controller For Home

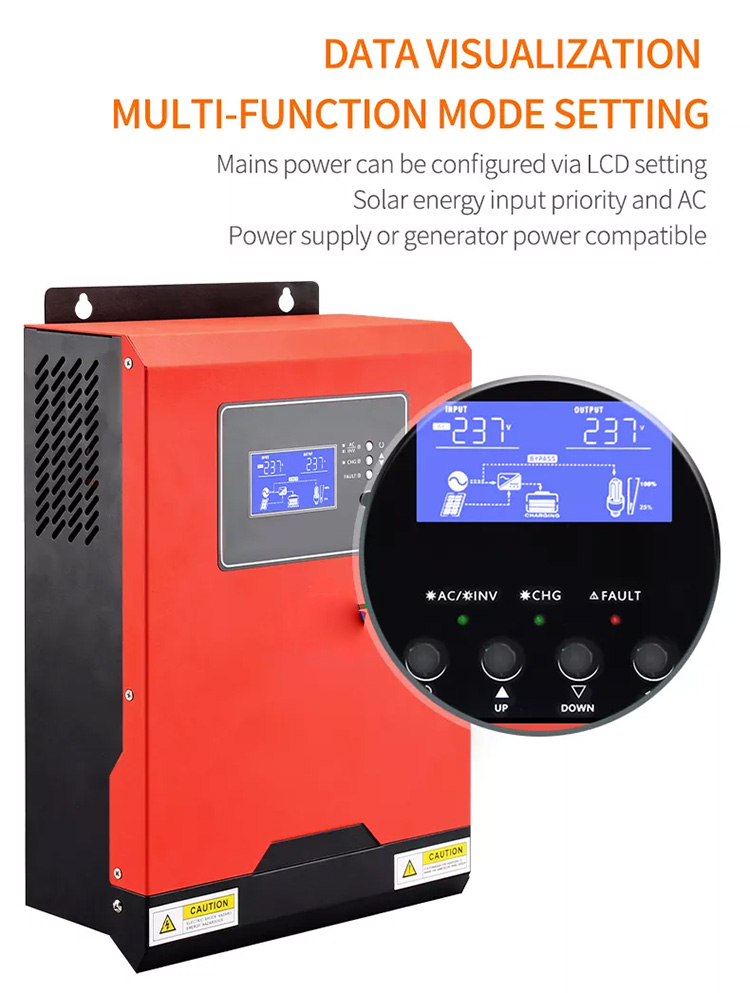

High Frequency Hybrid Solar Inverter Pure Sine Wave The mains input voltage range can be selected according to the load requirements, and the priority input mode can be set through the LCD screen.
[vc_row][vc_column][vc_column_text]
High-Frequency Hybrid Solar Inverter Pure Sine Wave 2.2KW 24VDC 220VAC MPPT Solar Controller For Home
Honest marketing
1.we are a manufacturer with the production experience of more than 10 years
1.we are a manufacturer with the production experience of more than 10 years
2.We own ISO,CE,ROHS,FCC,ETL,PSE certificates
3.We accept OEM and ODM
4.Our salesman is with rich experience in foreign trade and efficient work efficiency
5.High-quality after-sales service to solve all your doubts.
Parameters
|
Model
|
SDPH2200-24V-MPPT50A
|
|||
|
Rated Power
|
2200W
|
|||
|
Input
|
Input Voltage
|
230VAC
|
||
|
Selectable Voltage Range
|
90-280VAC
|
|||
|
Frequency Range
|
50HZ or 60HZ
|
|||
|
Output
|
AC Voltage Regulation
|
230VAC±5%
|
||
|
Surge Power
|
4400W
|
|||
|
Efficiency
|
90-93%
|
|||
|
Transfer Time
|
10-20ms
|
|||
|
Wave Form
|
pure sine wave
|
|||
|
Battery&AC Charger
|
Battery Voltage
|
24VDC
|
||
|
Floating Charge Voltage
|
27VDC
|
|||
|
Overcharge Protection
|
32VDC
|
|||
|
Solar Charger
|
Solar Controller Model
|
MPPT
|
||
|
Max PV Array Voltage
|
102VDC
|
|||
|
Max PV Array Voltage
|
1400W
|
|||
|
Max Solar Charge Current
|
50A
|
|||
|
Max AC Charge Current
|
20A
|
|||
|
11.8*28.5*36Dimension(L*W*H)cm
|
10.3*22.5*32
|
|||
|
N.W./Unit(kgs)
|
5
|
|||
